Automobile Assembly Line |WLKATA Training Solution|

$6,990.00 USD
$6,990.00 USD
Sku: WL-PL-Aa-Tec3-C1

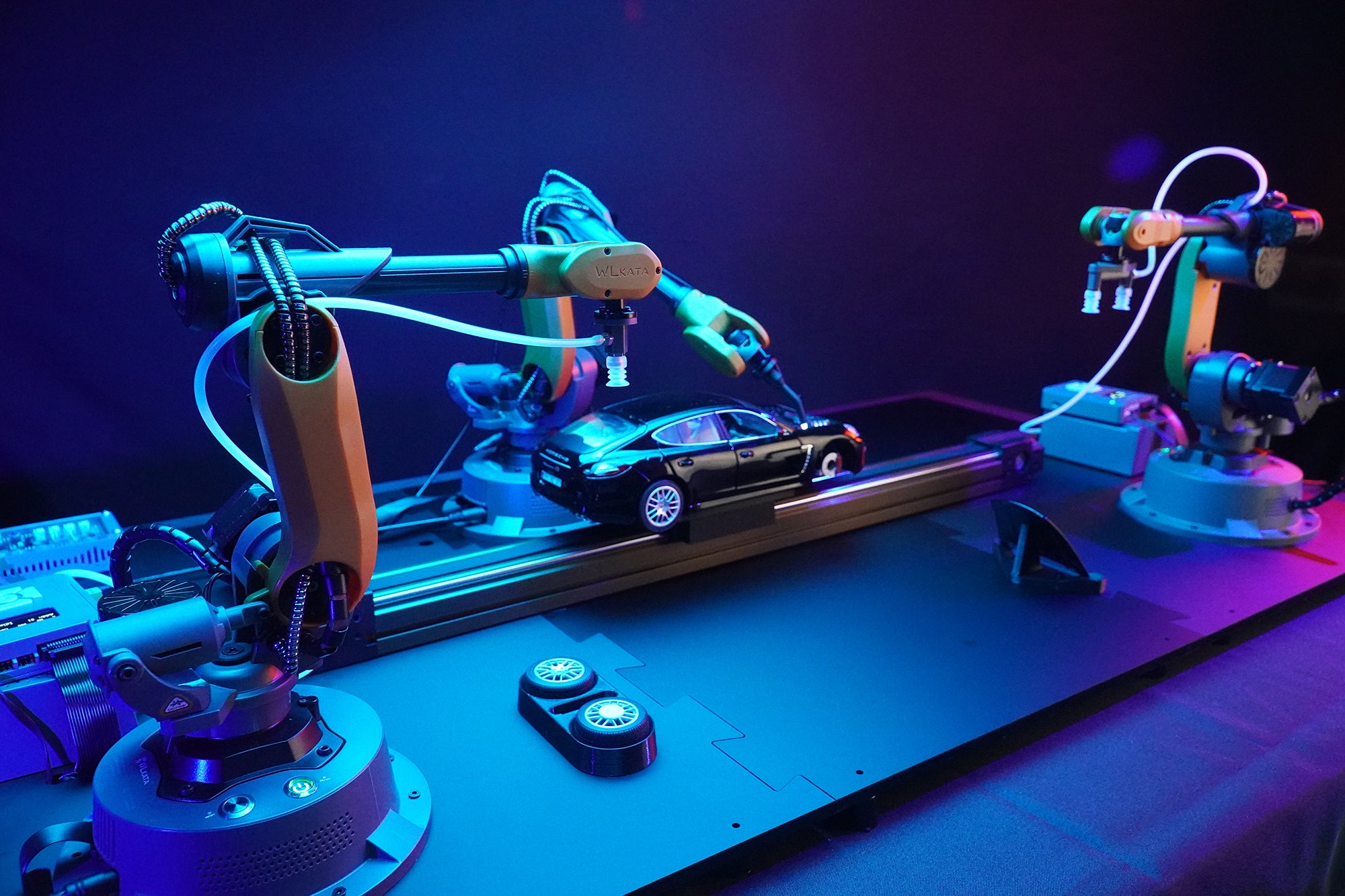

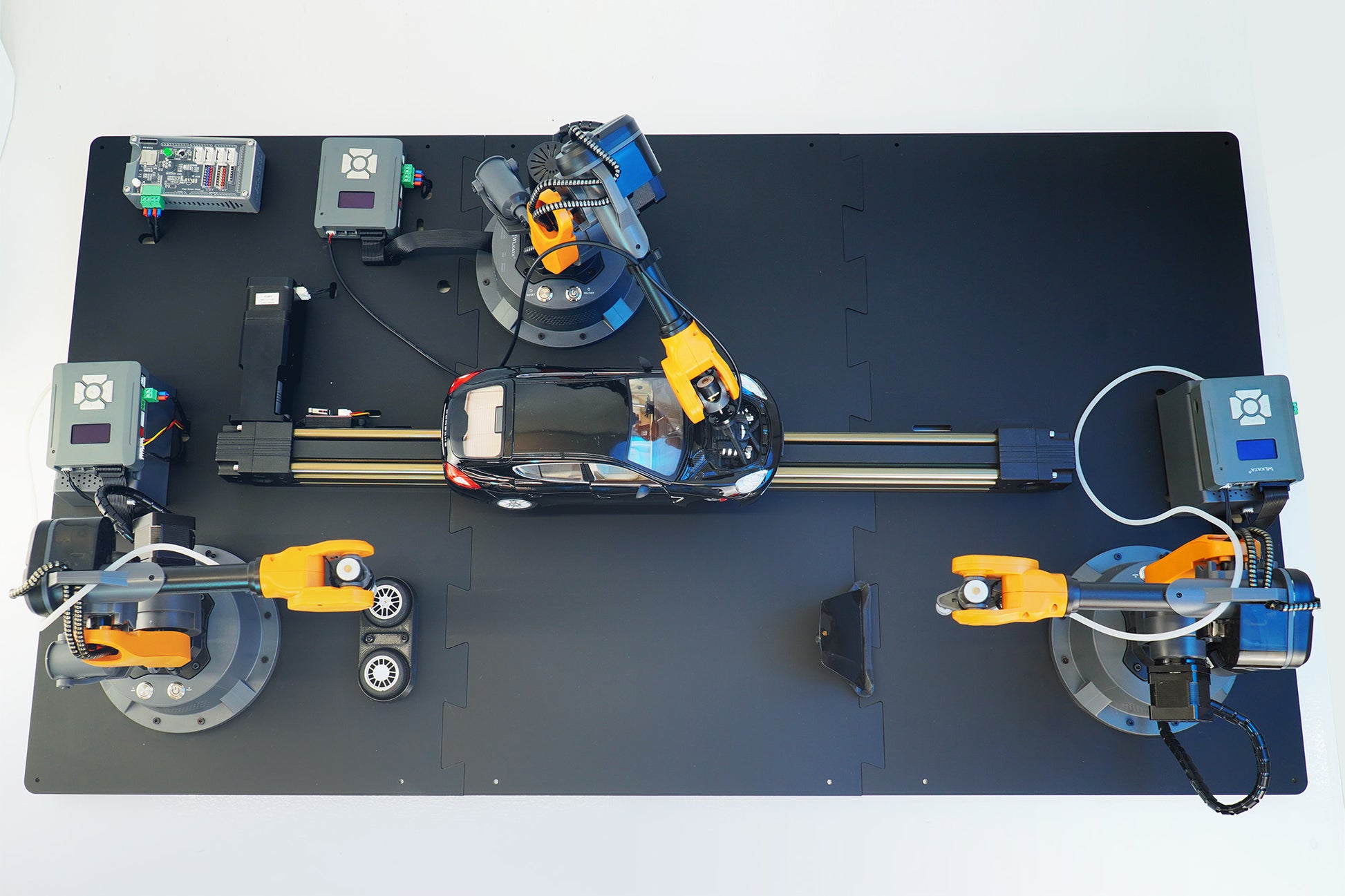

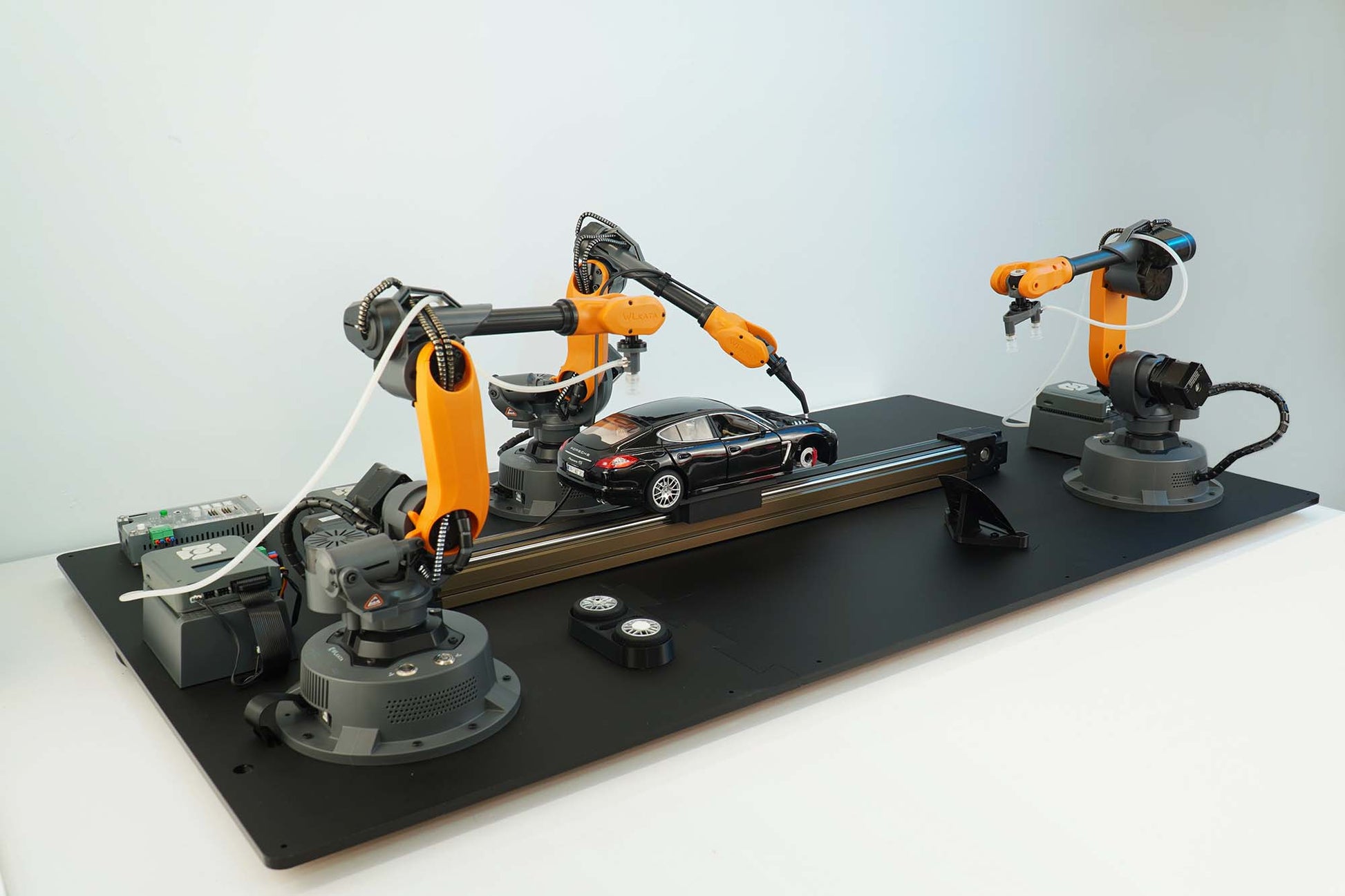

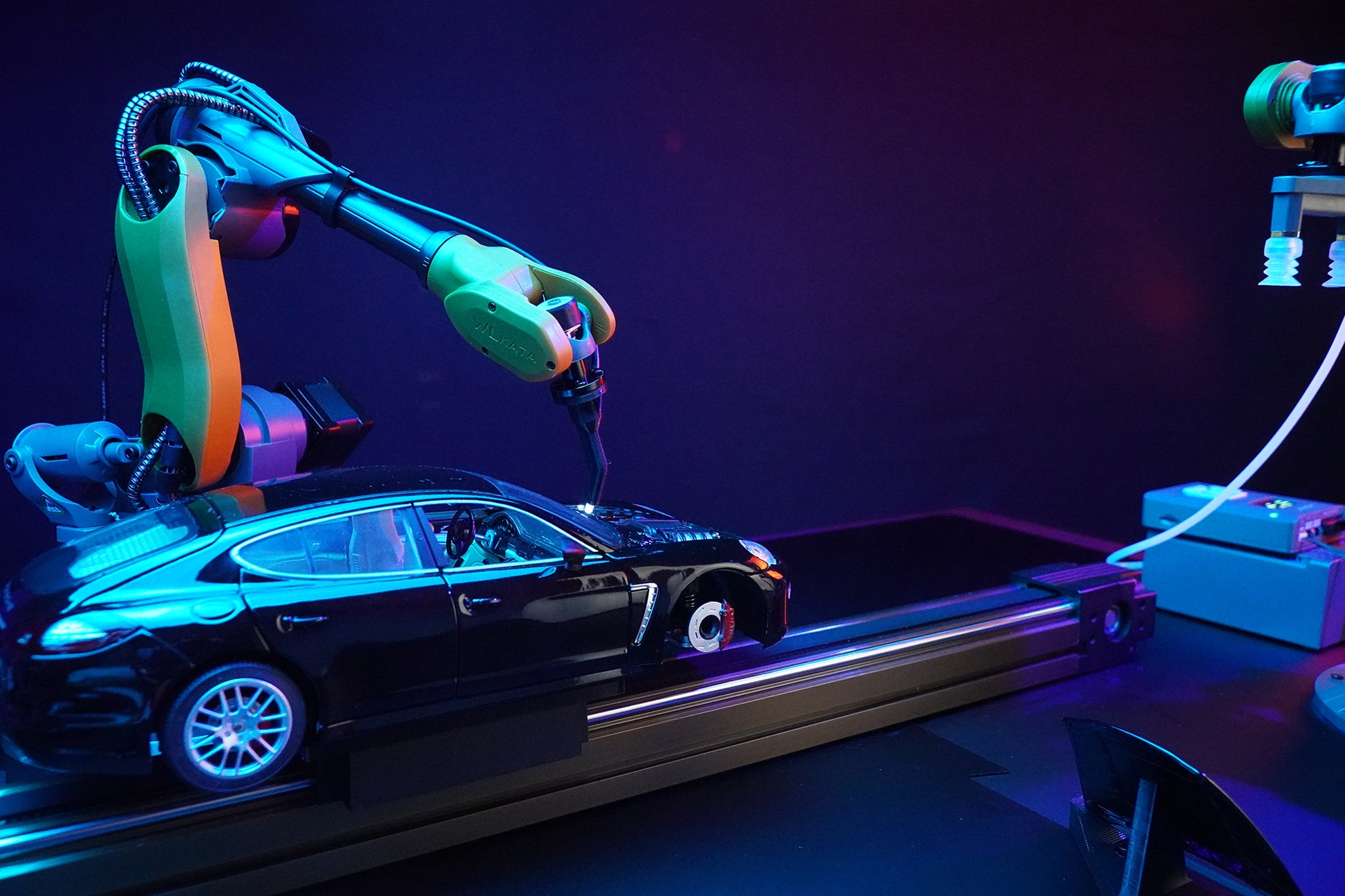

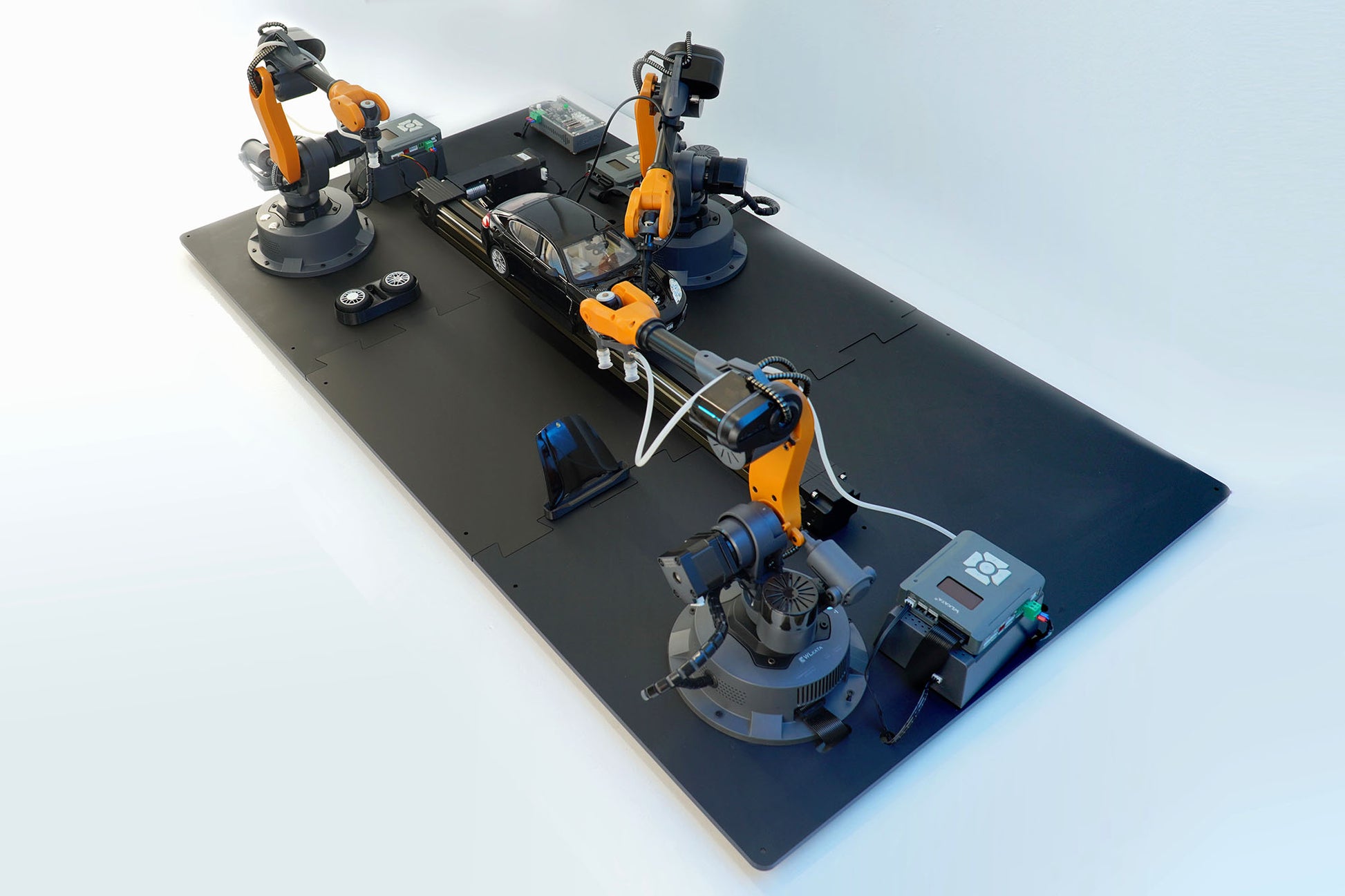

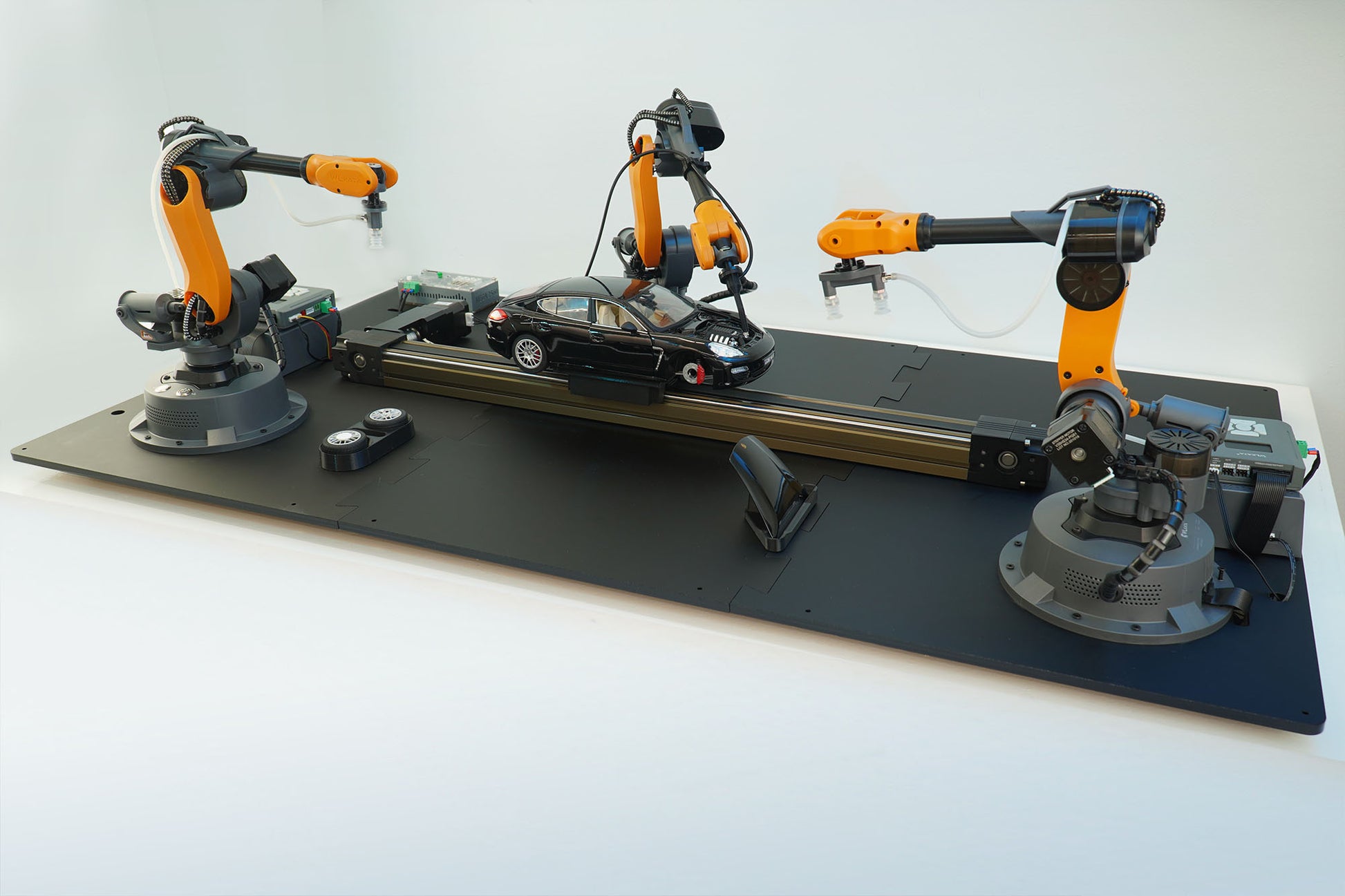

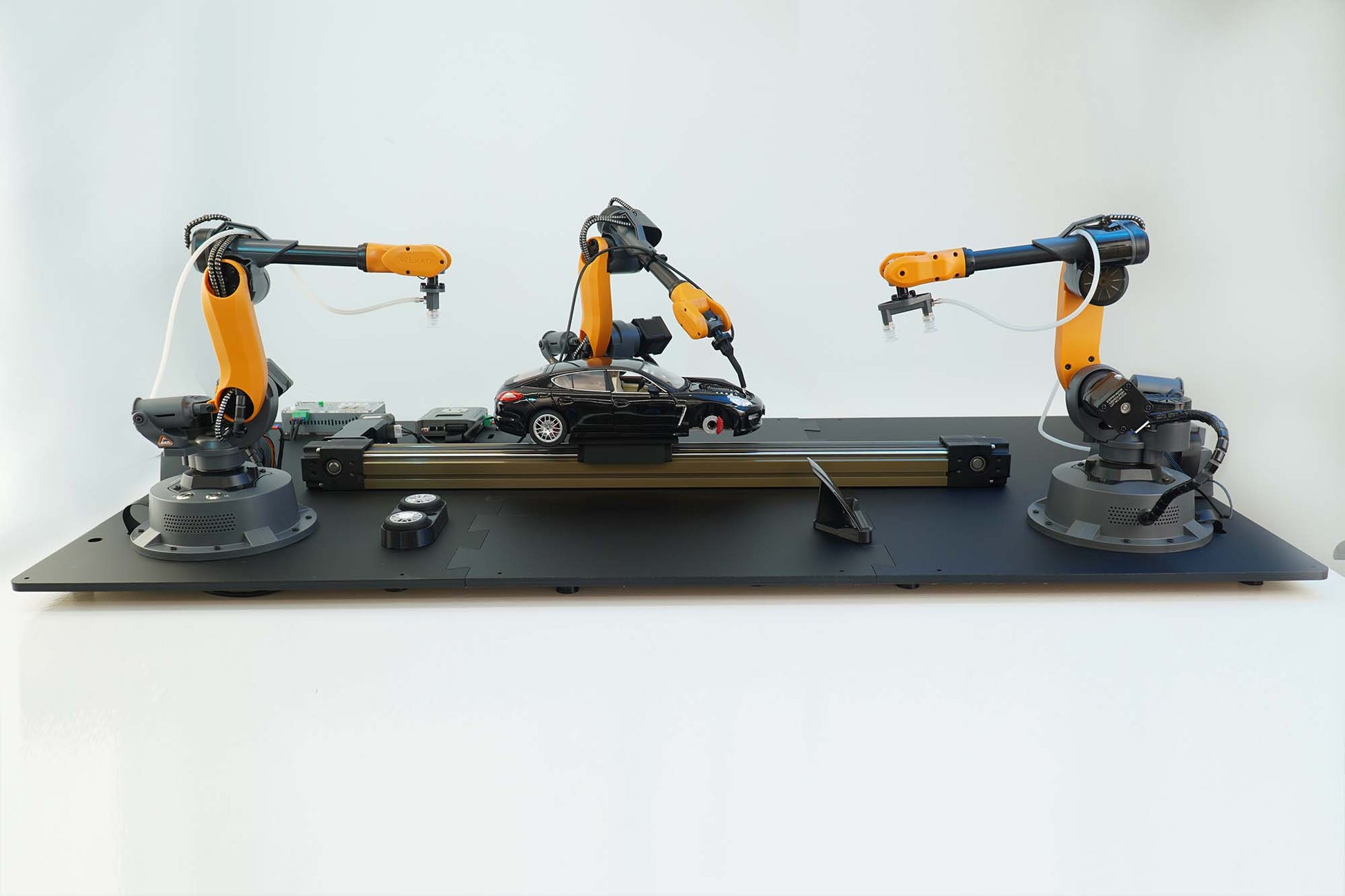

Wlkata Mirobot Automobile Assembly Cell

Shipping Overview

Shipping List:

1. Wlkata Mirobot Professional Kit X 1

2. Wlkata Mirobot Education Kit X 2

3. Bottom plate X 1

4. Sliding rail set X 1

5. Car model (1/18 Scale) X 1

6. Main control box X 1

7. Accessories and welding simulation module X 1

8. A flash disk with document, code and textbook of the Automobile Assembly Line (includes experiment textbook for educators, source code, installation handbook, PPT quick start guide, demonstration videos ) X 1
Note: The textbook is in digital version, see info in below.

Package:

Packakge 1:
WLKATA Mirobot Professional Kit X 1 :
5.6kg (12.3 lbs) , 375*335*290 mm (14.8*13.6*11.5 inch)


Package 2:
Kit Box of WLKATA Mirobot Fruit
Picking Cell X 1:
1.1kg (2.4 lbs) , 350*195*115mm (13.8*7.7*4.5 inch)


Package 3:
Production Cell Smart Base – Size Small X 1：
12.5kg (27.4 lbs), 580mm X 400mm X 100 mm
(22*16*4 inch)

Package 4:
LED Lighted Infographic Panel with Stand X 1:
2kg (4.5 lbs), 580*400X60mm (23*16*2 inch)


Total Weight: 21.2kg (47.6 lbs)


Brand: WLKATA

Robotics Training Solution

Wlkata Automobile Assembly Line

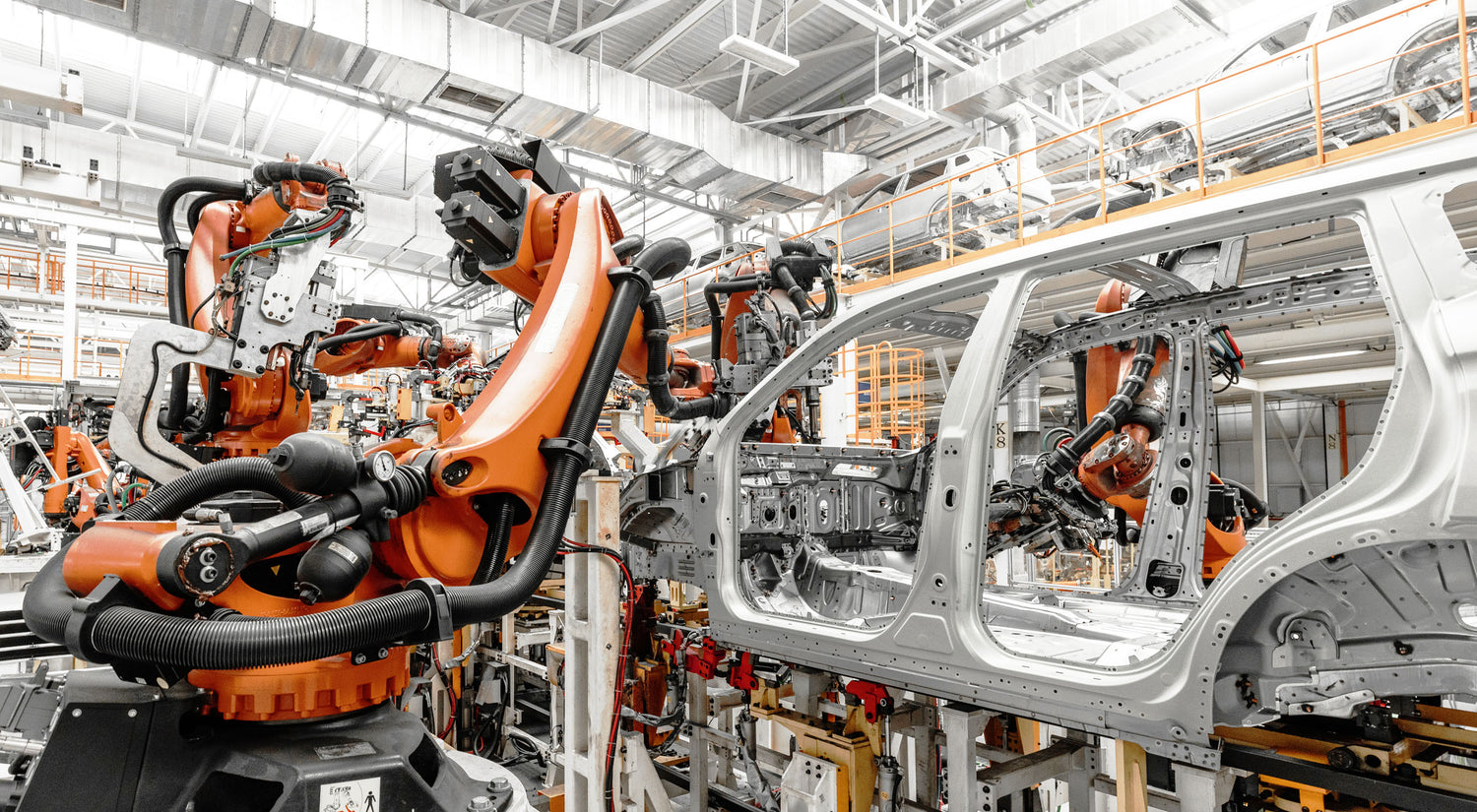

Experience The Real Car Production Line Technology With Robotics

Robotics Automobile Assembly Line Robotics Training

Automobile Assembly Line

Comes With An Experiment Textbook – Hands-on Experience Meets Expert Knowledge!

1 Software

- For Robotic arm Mirobot and Sliding Rail programming :

✅WLKATA Studio

- For programming the automobile assembly line scenario (including Mirobot robotic arm, sliding rail, and customer's own Arduino products), you can use:

✅ WLKATA BlockFactory – Ideal for beginners with a visual, block-based programming approach.
✅ Arduino IDE – Best for advanced users who prefer coding in C/C++ with full customization and control.

Go to download center

2 TEXTBOOK of Automobile Assembly Line

| Automobile Assembly Line Experiment Textbook|

|Textbook Learning Objectives |

Part A: Understanding the essential concepts of 6-axis robotic arm structure, function and control:

  • -Robotic arm D-H parameters
    -Robotic arm coordinate mode
    -Robotic arm end effector
    -Electrical parameters of robotic arm;
    -Command (Blockly, G-code and C++ via arduino)
    -Robot arm control logic

Part B: Understanding and practicing the automation concepts in an automobile factory:

  • -Linear Guide Program Control
    -Multi-device Collaborative Communication
    -C/C++ Programming with multiple devices
    -Automobile Assembly and Welding Process Simulation

| Textbook Outline |

I Product overview and funtion

II Production line installation instructions

III Operation instructions

IV Production Line Debugging

V Automobile Assembly Project practices (each of them is detailed with experimental objective, experimental instrument, and experimental procedure):

  • Project 1: Robotic arm teaching programming
    Project 2: Communication of Arduino and RS485
    Project 3: Use of Sliding Rail
    Project 4: Automobile Assembly Production Line Construction

VI Additional documents:

  • -Shipping list
  • -Development documents ( G code instruction set user manual; Ardurino Mirobot library; firmware upgrade package)
  • -Software installation package
  • -Daily operation and precautions manual
  • -PPT slides for educator
  • - And more...

| Cannot find the documentation you want? |

Tell us at: hello@wristline.com
Or call us at: +1 (201) 496 9009

⚙️ Technical Parameters
